ANY-maze Radio remote control

The ANY-maze Remote control provides a simple and practical way to remotely start tests. It consists of two parts: a receiver, which connects to a USB port on your computer, and the remote control itself, which has two buttons and works through walls and at distances of up to 50 metres.

  • Radio frequency – works through walls
  • Line-of-sight range up to 50 metres. Through-wall range 10 metres or more
  • Two buttons – can independently control tests in two apparatus

ANY-maze Radio remote control datasheet

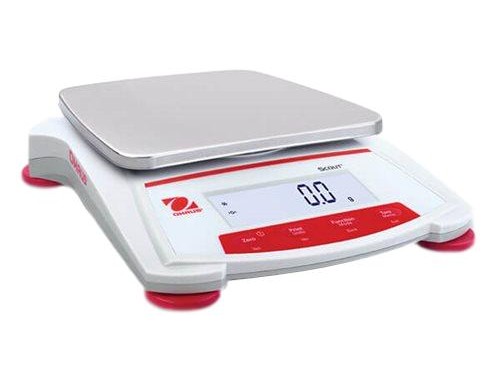

ANY-maze animal scales

The ANY-maze scales allow you to integrate the weighing of animals into your experiments. Based on settings you specify in the protocol, ANY-maze will prompt you to place an animal on the scales before a test; when you do this, it will weigh the animal and record the result. ANY-maze can also optionally calculate an animal’s treatment dose based on its weight.

  • The animal’s weight is averaged over a period of a few seconds to allow for the fact that it will probably be moving.
  • The scales can weigh animals up to 2.2Kg.
  • The robust design includes integrated overload protection to 22Kg.
  • The ANY-maze scales are supported in version 6.10 of ANY-maze and above.

ANY-maze animal scales datasheet

ANY-maze Infrared illuminator

The ANY-maze infrared illuminator allows you to track in very low light or even total darkness.

  • Works with all the cameras and lenses we supply
  • Works with any camera/lens that does not include an infrared blocking filter
  • Wall or Ceiling Mounted
  • Powered by 12V DC Power Supply (included)

ANY-maze Infrared illuminator datasheet

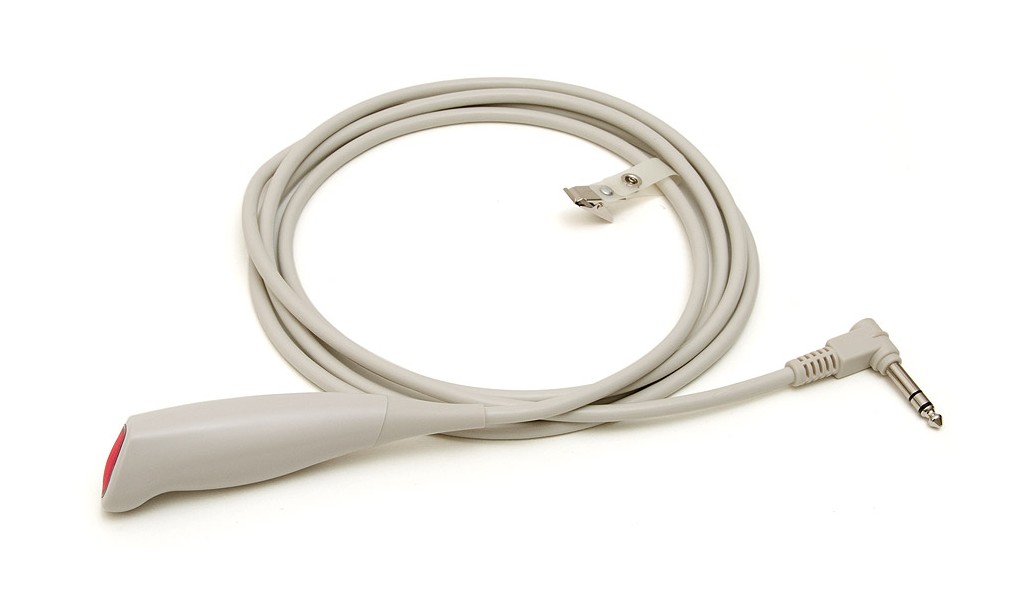

ANY-maze Wired remote control

The ANY-maze wired remote control allows you to start and stop tests at a distance from the computer.

  • Waterproof, making it ideal for Water Maze starts (and wet hands)
  • Connects via USB
  • 5.5m (18 foot) cable

ANY-maze wired remote control datasheet

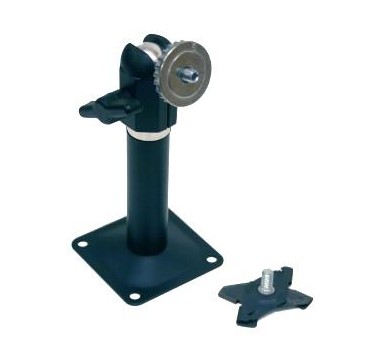

ANY-maze Camera mount

The high quality ANY-maze camera mount provides the versatility of wall, ceiling, or drop ceiling mounting.

  • Standard 1/4-20 UNC screw fits the ANY-maze USB and ANY-maze analogue cameras (and almost all other cameras on the market)
  • Clips directly to drop ceiling rails
  • Shaft is 7.5cm (3 inches) long but can be extended to 15cm (6 inches) by using the supplied extension

ANY-maze camera mount datasheet

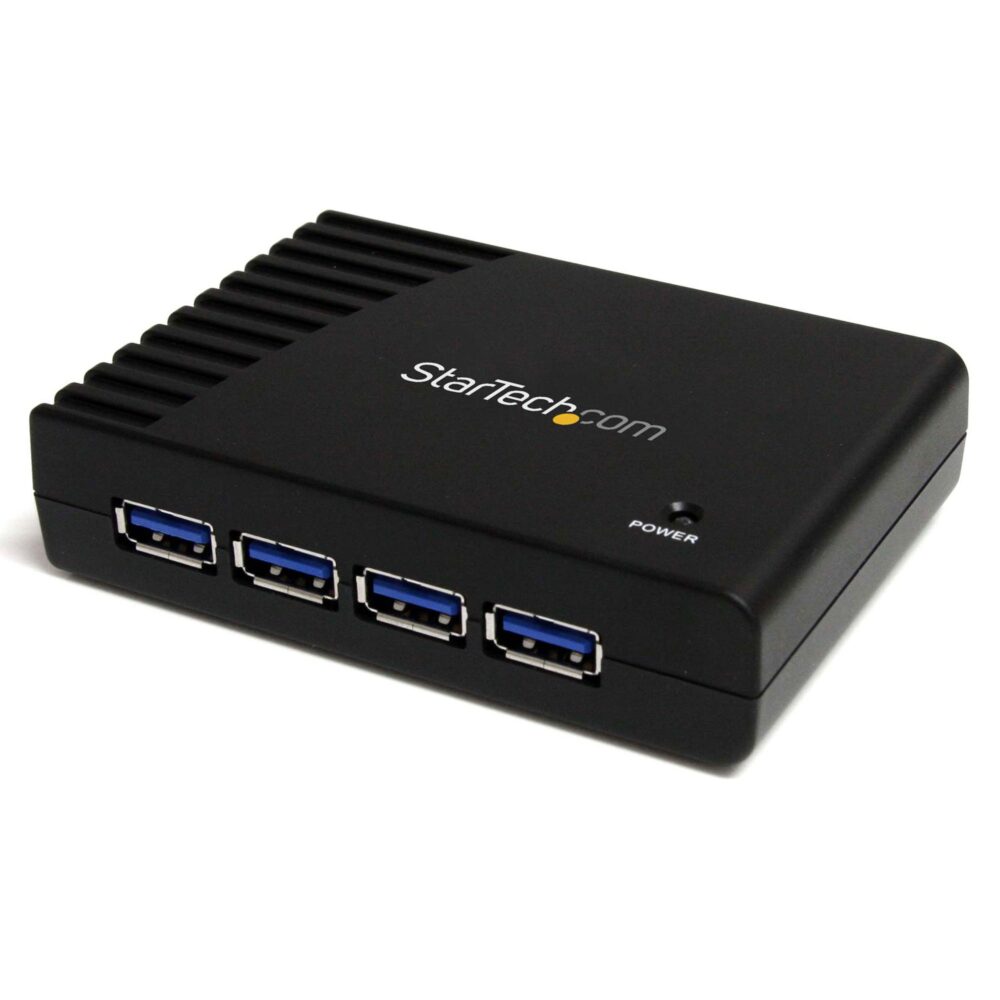

USB hub

  • A high quality, externally powered USB hub, ideal for connecting multiple cameras.
  • 4 USB ports
  • Compatible with USB 3.0 and backwards compatible with USB 2.0
  • Externally powered (power supply included)

ANY-maze USB hub datasheet
